High Speed Doors

Commercial - Industrial - Clean Room
Shop High Speed Doors Now
High Speed Door 1 High Speed Door 2 High Speed Door 3 High Speed Door 4 High Speed Door 5 High Speed Door 6 High Speed Door 7 High Speed Door 8 High Speed Door 9 High Speed Door 10 High Speed Door 11 High Speed Door 12 High Speed Door 13 High Speed Door 14 High Speed Door 15 High Speed Door 16
High Speed Door 1High Speed Door 2High Speed Door 3High Speed Door 4High Speed Door 5High Speed Door 6High Speed Door 7High Speed Door 8High Speed Door 9High Speed Door 10High Speed Door 11High Speed Door 12High Speed Door 13High Speed Door 14High Speed Door 15High Speed Door 16
View Online Brochure - Automatic High Speed Doors High Speed Doors Spec Sheet See more information, pictures and videos below.

Request a Quote

Quick turnaround.

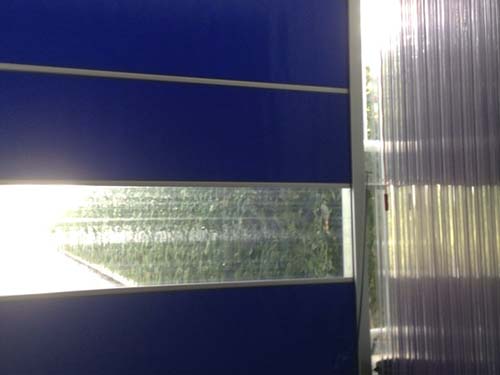

Vision windows are standard.

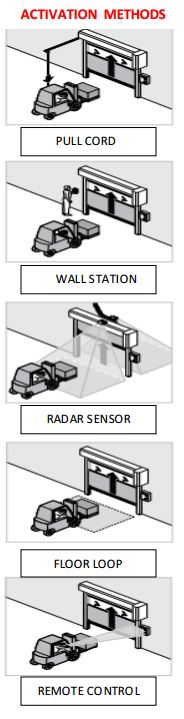

Choose an Activation Method:
Select more than 1 if needed.

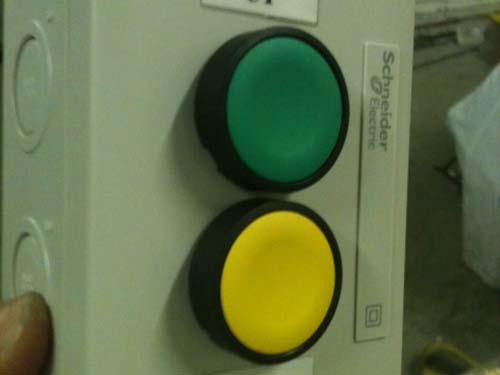

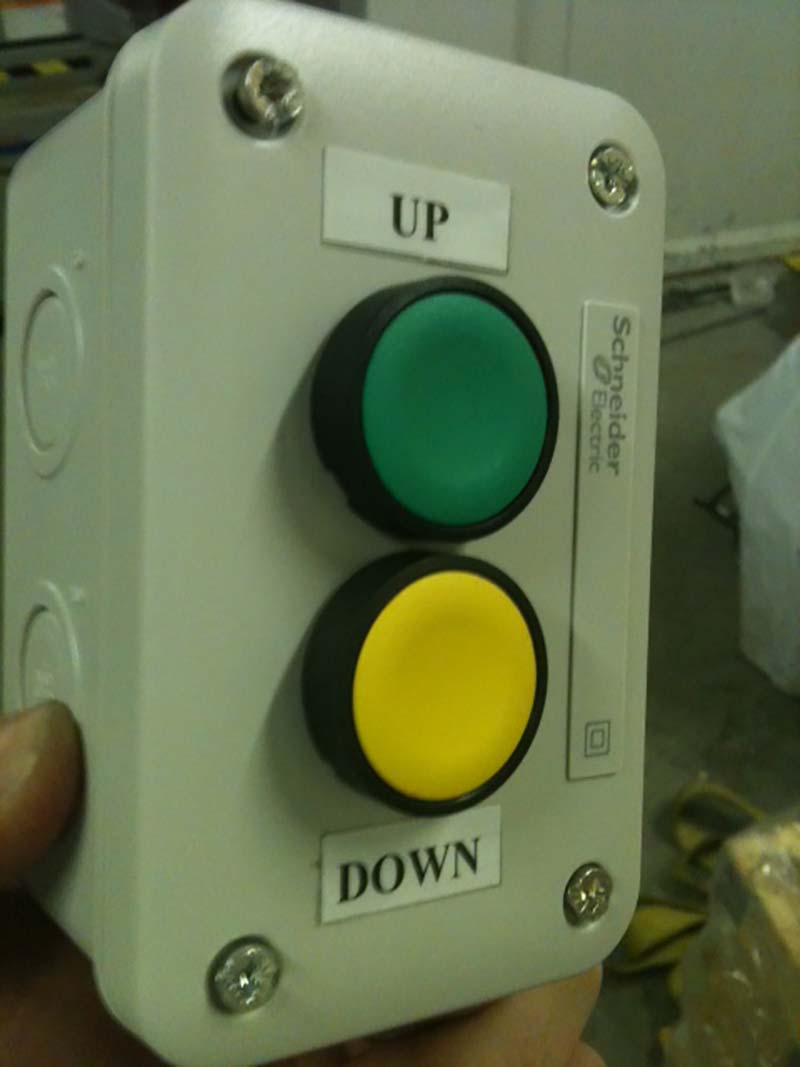

Wall Station
Radar Sensor
Pull Cord
Remote Control
Send Request Now

Product details

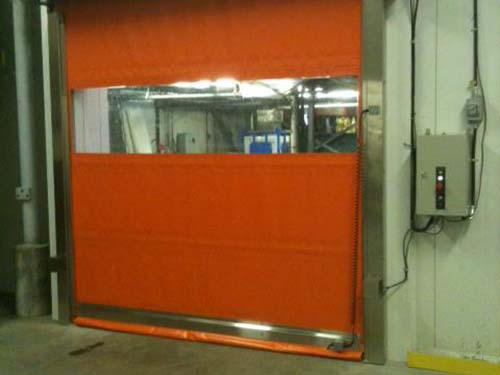

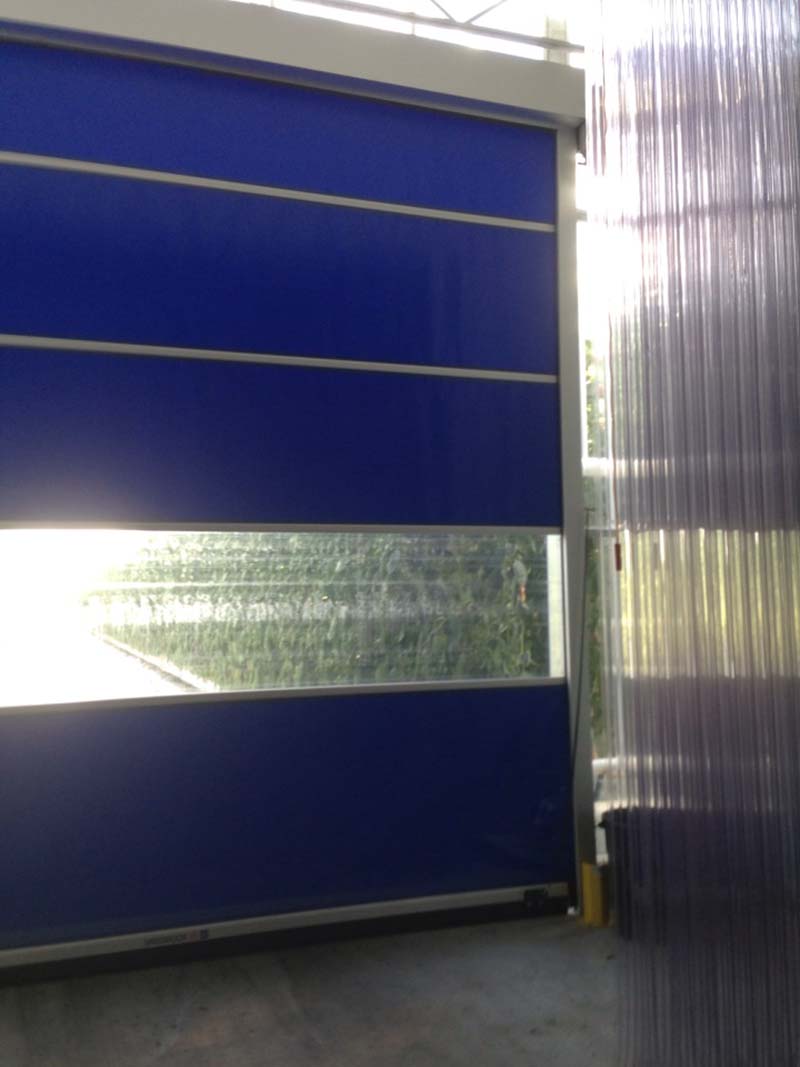

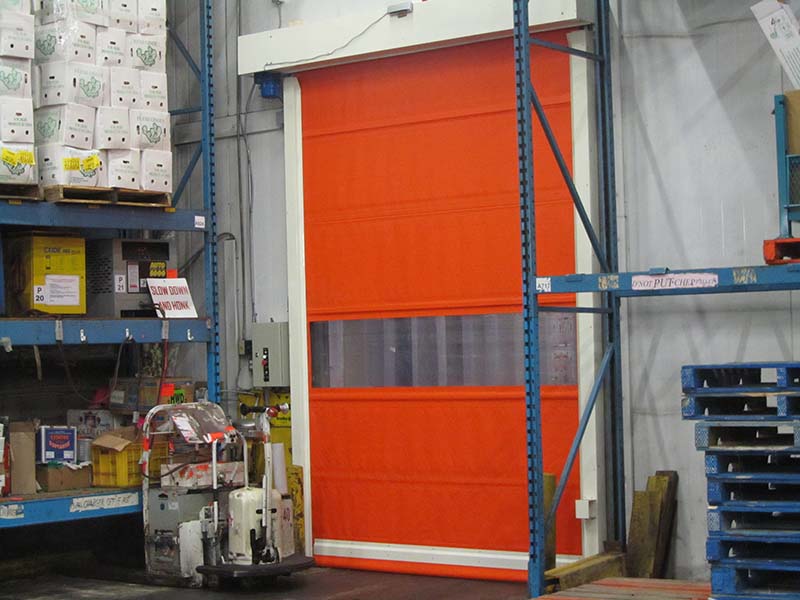

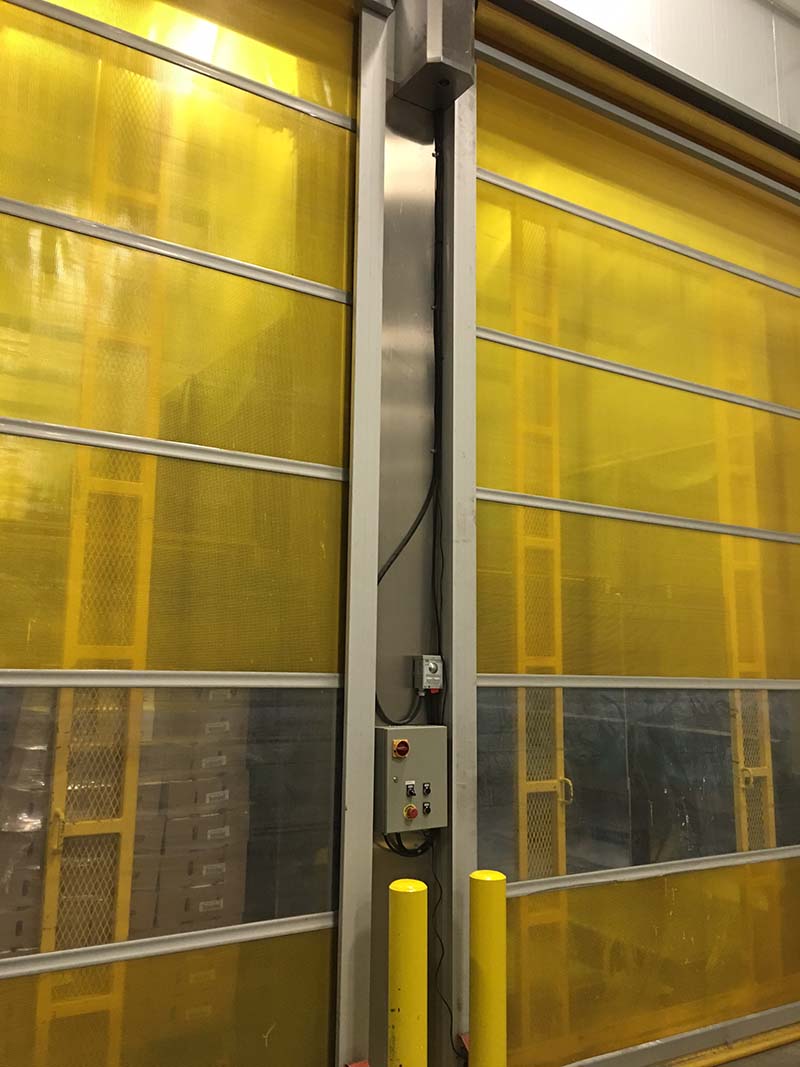

Stripcurtains.com offers Quick-Seal Hi-Speed Doors for quick access through openings. They are designed for high volume, high speed traffic in commercial, industrial or refrigerated applications.

All doors incorporate a state-of-the-art microprocessor controlled AC variable speed drive system, allowing the door to move at faster speeds than conventional doors. All roll-up doors are equipped with standard safety features for protection against injury.

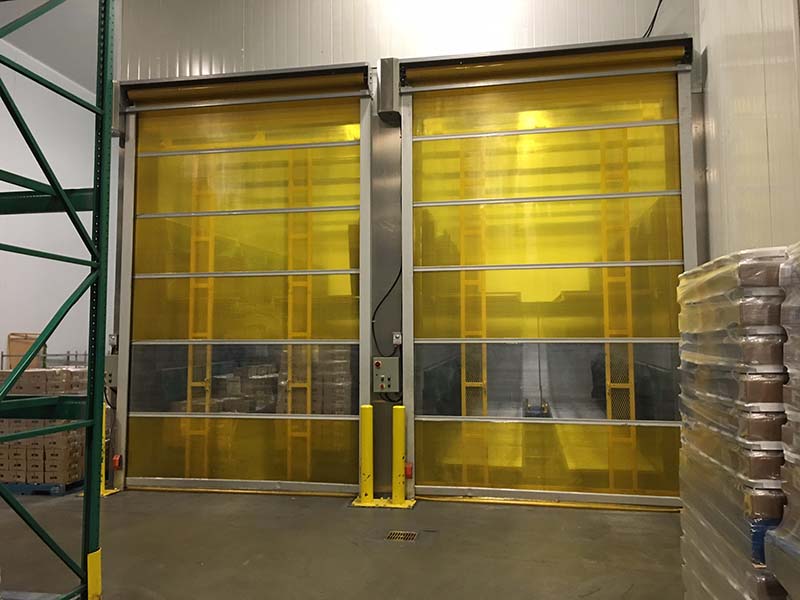

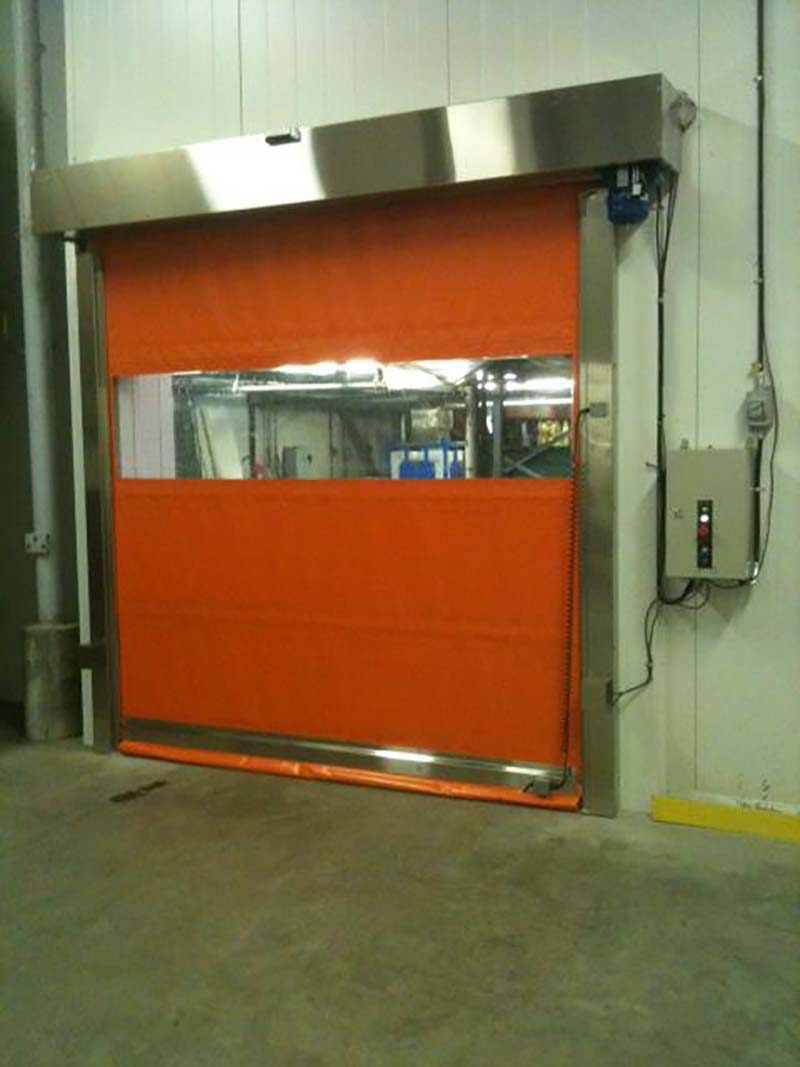

Freezer High Speed Door




High Speed Door Demo Video

(Clip #2)

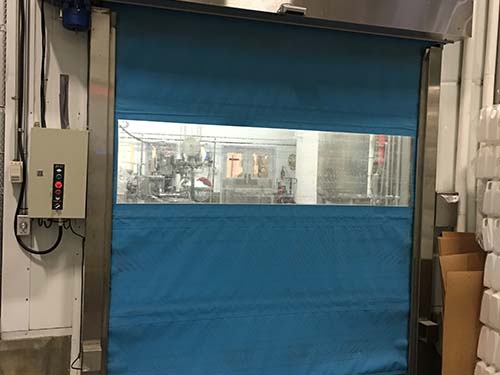

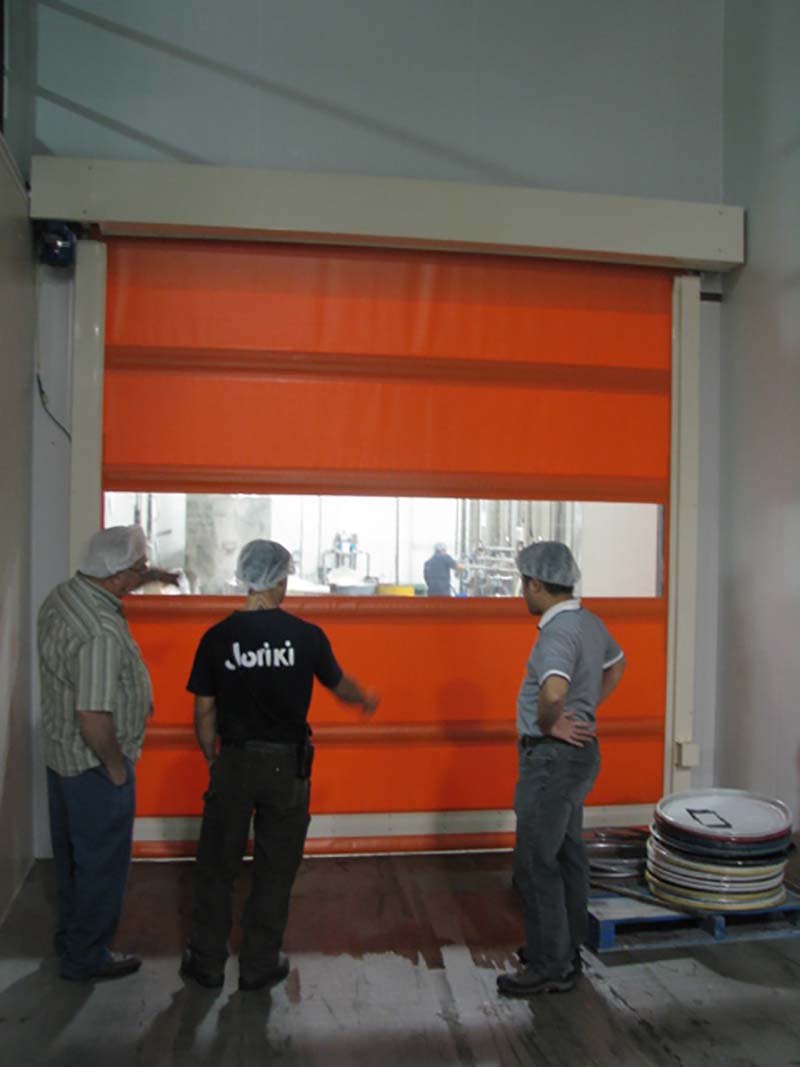

Dairy Plant - Stainless Steel - BC Location



High Speed Door Demo Video

(Clip #3)
Food Facility Yogurt Curing Temperature Control Application - US



  • Manufacturing
  • Pharmaceutical
  • Cold Storage
  • Transport  and Distribution
  • Food Processing
  • General Warehousing
  • Clean Rooms
Member of International Door Association

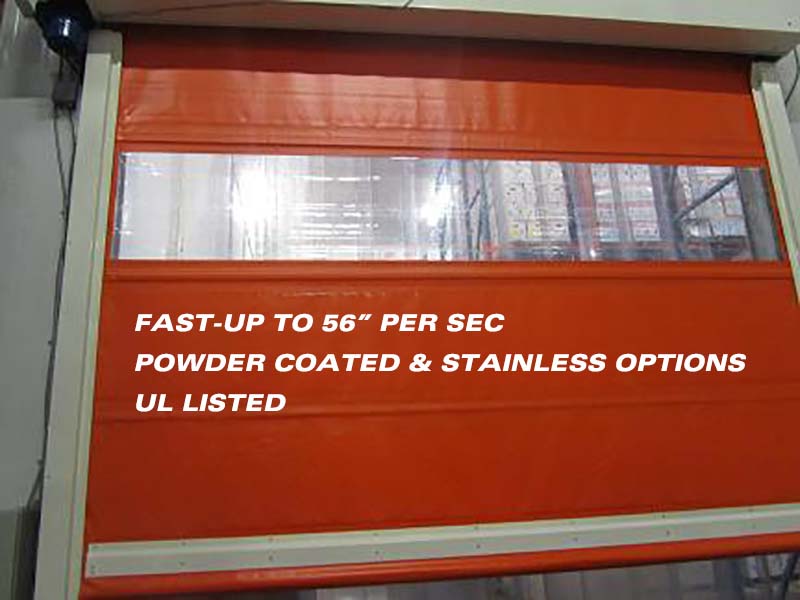

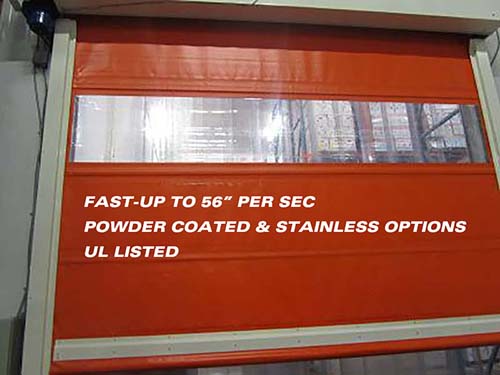

Speed

Opening 0.8~ 1.5m/sec (adjustable); closing 0.5~ 0.8m/sec
(adjustable)

Motor

Turbine decelerator + brake, three-phase 220V

Power

three-phase 220V AC, 15A

PVC Material

PVC Resin 1000 den textile, 0.8mm thickness; low flammability,
dust-proof, and UV-proof

Door Frame
Material

galvanized steel, thickness: 2.0mm

Safety
Equipment

Germany safety, GS, certified electronic device, cushions installed on
the bottom edge of the door with sensor to react contacts to
obstacles.

Airflow-proof

Thin steel plates have been installed inside of the PVC door sheet
behind the wheels. This structure enhance the stability of the wheels
and prevents wheel degression caused by strong airflows.

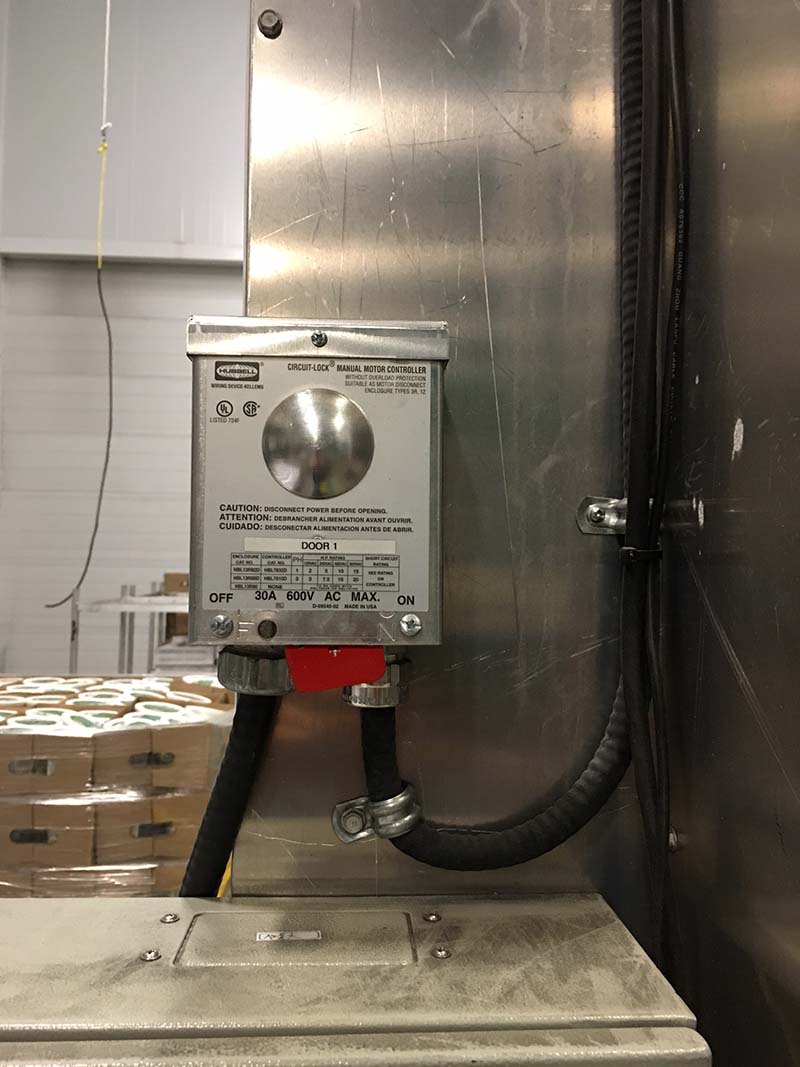

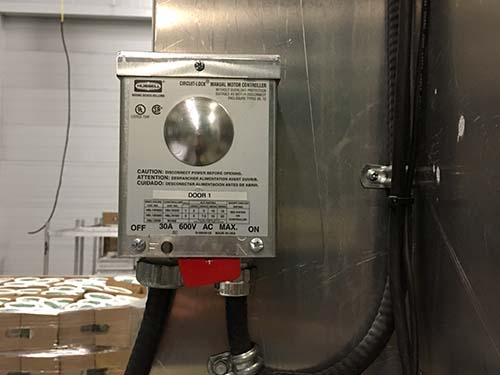

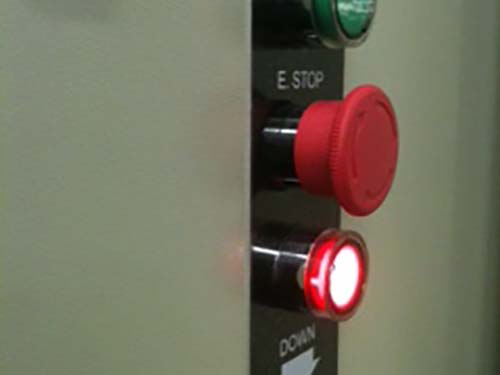

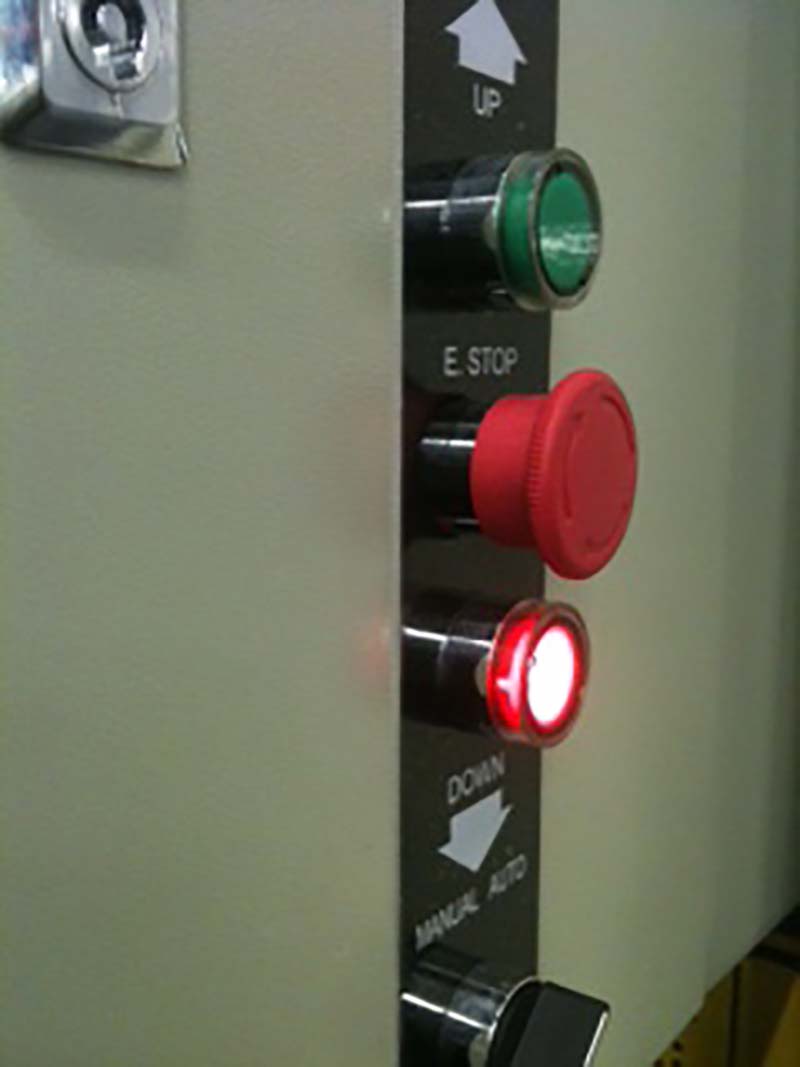

Control Panel

With emergency rising and lowering bottoms

Positioning
System

Limit Switch

Safety

1. Photoelectric sensors installed on the side tracks, with emergency
stopping reaction when sensing obstacles.

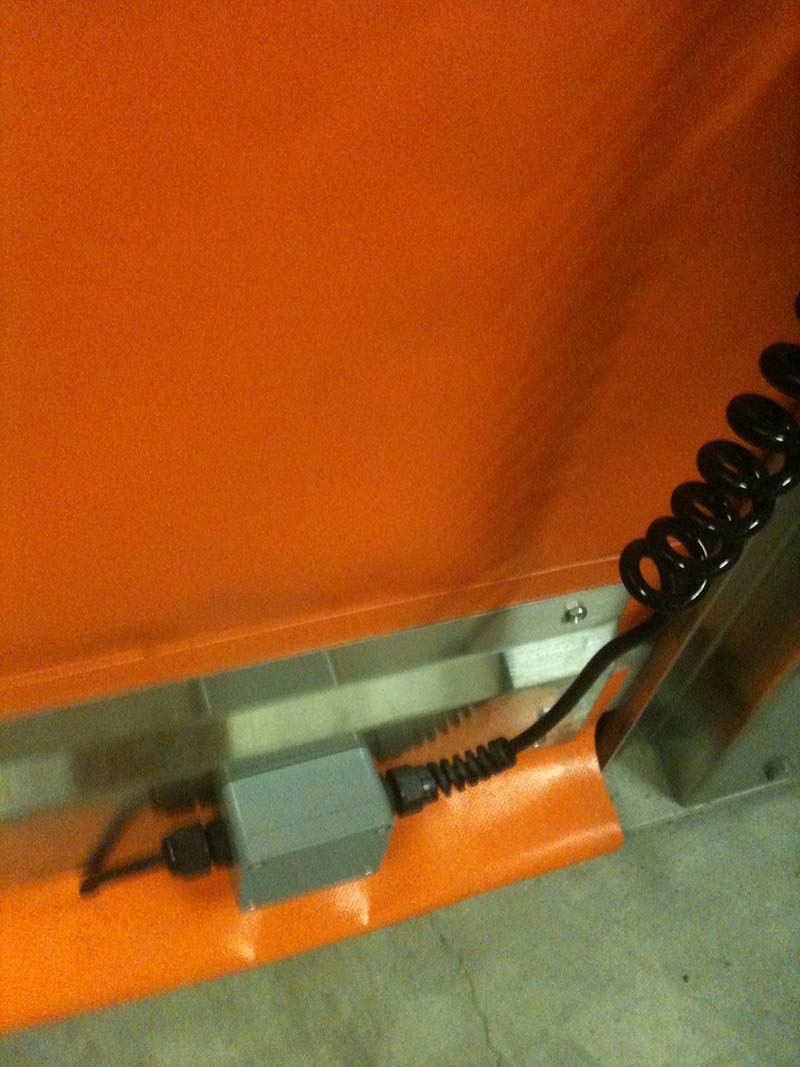

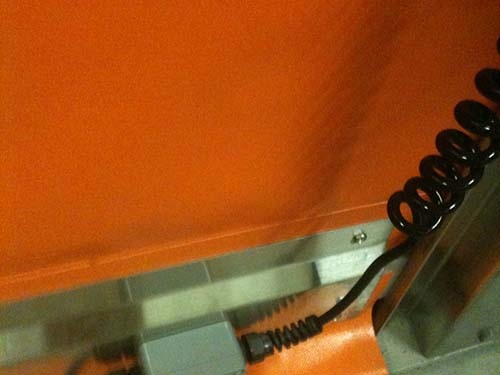

2.  Cushions installed on the bottom edge of the door with sensor to
react contacts to obstacles.
3. Control: Switches with emergency stopping reacting function.
4. Manual pulling chain when power failure is encountered."

Sensor System

Six options: radar sensor, infrared sensor, supersonic sensor,
photoelectric sensor, manual operating system, remote control.
Connectable to PLC, AGV, Interlock.
